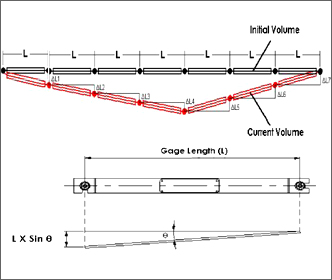

This system provides continuous settlement readings along a line that is more or less horizontal. It is thus eminently suitable for monitoring settlement beneath embankment on soft ground, open foundation for structures or foundation of storage tank.

Applications:
Monitor settlement or heave under embankment, dames, roadways, storage tank and land fill.

Features::
→ Increase productivity
→ High accuracy
→ High Reliability
→ Ease in automation
→ Continuous monitoring

Specifications:
Sensor : Solid State MEMS Sensor
Measuring Range : ±15⁰, ±30⁰, ±60⁰
Output Signal : 500mV to 4500mV
Input Voltage : 7-30V DC
Accuracy : ±0.1⁰
Resolution : 0.05⁰
Operating Temperature : -20⁰C to +80⁰C
Operating Current : 15mA
Output Impedance : 100Ω
Gauge Length : 1m, 2m, 3m
