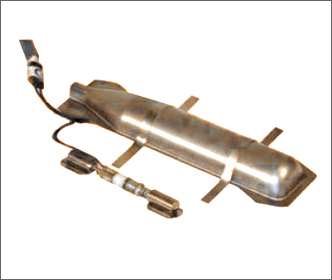

Spot-Weldable Strain Gauges are designed to be welded or pasted for strain monitoring in steel/concrete structures and consists of vibrating wire element anchored at each end. Loading of the structures changes the length of the tube and results in changes in the tension of the wire. An electromagnet is used to pluck the tensioned wire and measure the frequency of the vibration.

APPLICATIONS
Steel Structures, Piles, Reinforced Bars, Dams, Bridges, Building,

FEATURES
Quick and easy installation
Low profile
High compliance
Pre-tensioned wire
Excellent long term stability
Specification:
Sensor Type - Vibrating wire
Range - 3,000 microstrain
Resolution - 1.0 micrstrain
Accuracy - ±0.1% FSR
Operating Temp. - -20℃ ~ 80℃
Gauge Length - 50mm
