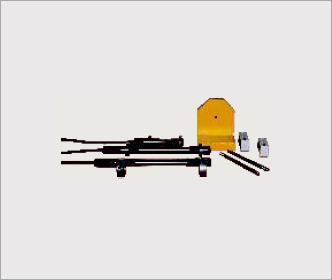

Embedment strain gauges measure strain in concrete. It can be used in multi directions using rosette to know the direction of strain in mass concrete. Typical applications include:

• → Measuring strains in reinforced concrete and mass concrete.
• → Measuring curing strains.
• → Monitoring for changes in load.
• → Measuring strain in tunnel linings and supports.

Specifications:
Range : ±1500micro strain
Resolution : 1 micro strain
Material : Stainless steel
Operating temperature : -10 to 80°C
Thermistor : YSI 44055 or equivalent, 3KΩ at 25°C
