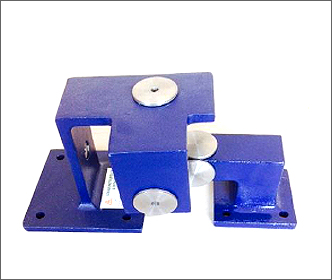

The mechanical tri-axial joint meter is used to monitor the relative movement of two adjacent surfaces in three orthogonal directions the data is being recorded using digital depth gauge manually.

APPLICATIONS
Steel Structures, Piles, Dams, Bridges, Building, etc.

FEATURES
→ Quick and easy installation
→ Excellent long term stability
→ More reliable in harsh environment.

SPECIFICATIONS
Model - ASI-1420
Range - 0-50mm and 100mm
Resolution - 0.1mm
Accuracy - ±0.25% FSR
Operating Temp. - -20℃ ~ 80℃
Material - Dei cast Almunium
Monitoring - Digital Depth Gauge
