Inclinometer casing is a special purpose, grooved pipe used in inclinometer installations. It is typically installed in boreholes, but can also be embedded in fills, cast into concrete, or attached to structures. Inclinometer casing provides access for the inclinometer probe, allowing it to obtain subsurface measurements. Grooves inside the casing control the orientation of the probe and provide a surface from which repeatable tilt measurements can be obtained.

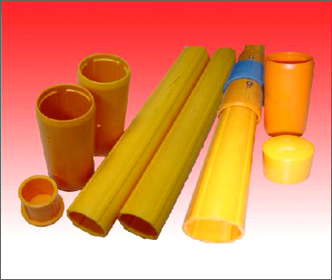

The inclinometer casing is available in ABS resin. It is joined each other using suitable couplings. Top cap and bottom caps are available for plugging the bottom and top of the casings.

Applications:
Monitoring of land slides
→ Monitoring of dams and embankments performance
→ Monitoring of movement of retaining walls, diaphragm walls and piles
→ Measurement of ground movement due to tunneling,

Specifications:
Casing:
Material - High impact ABS resin
Outer diameter - 70mm
Inner diameter - 60mm
Guide slot width - 4mm
Guide slot depth - 3mm
Groove precision - <0.3⁰/3m
Standard length - 1m, 2m, 3m
Weight - 1.1kg/m

Coupling:
Material - High impact ABS resin
Outer diameter - 80mm
Inner diameter - 71mm
Standard length - 200mm
Weight - 0.22kg
